کابل هیت تریس MI سری XMI-L

1. Product Overview

The Raychem XMI-L Mineral Insulated (MI) Heating Cable is an industrial electric heat-tracing solution designed for freeze protection and process temperature maintenance in demanding operating environments. Engineered for high-temperature applications, XMI-L heating cables support process temperature maintenance up to 400°C (752°F) and continuous exposure temperatures up to 550°C (1022°F) when de-energized, subject to the applicable product and installation limitations.

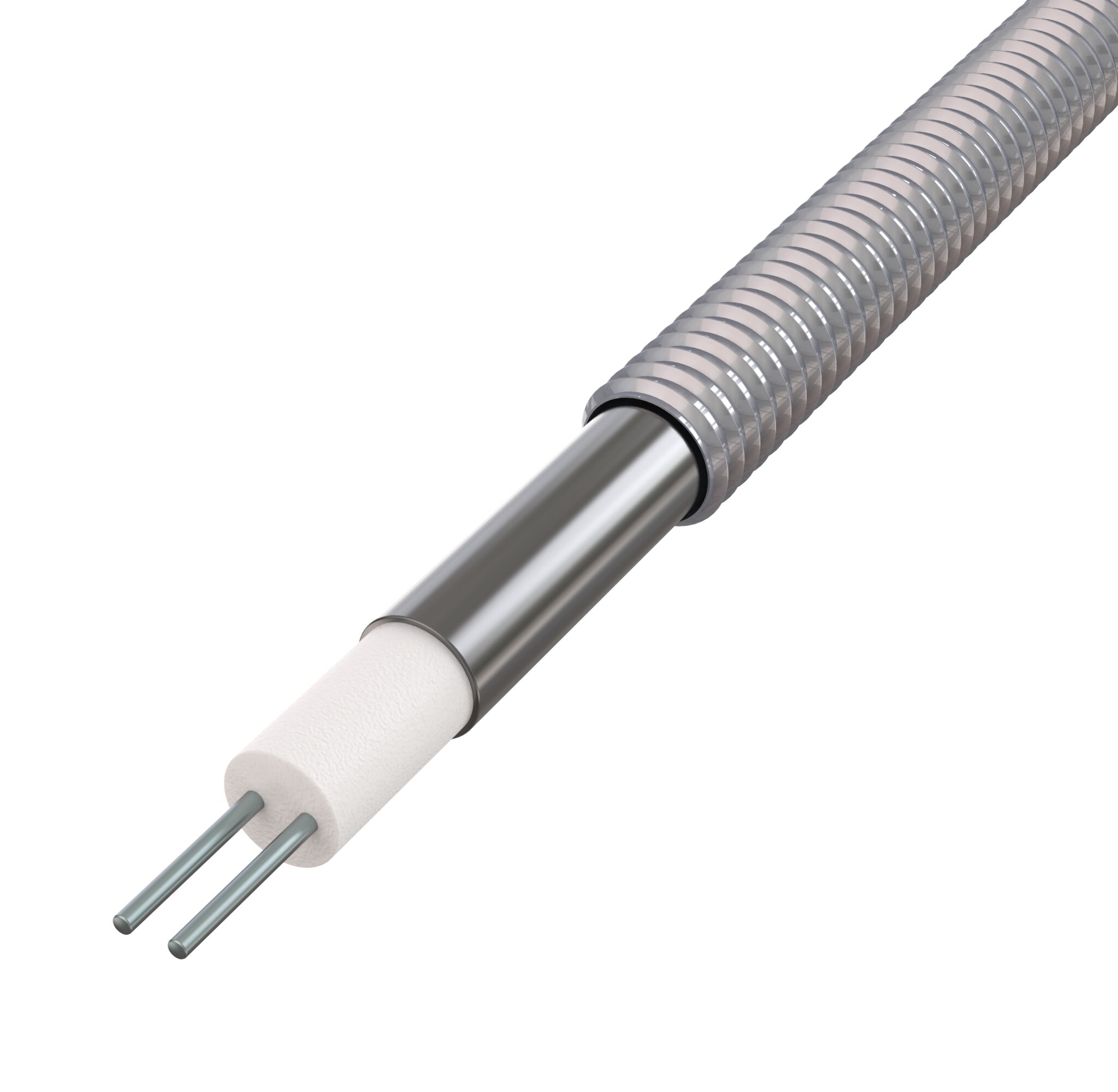

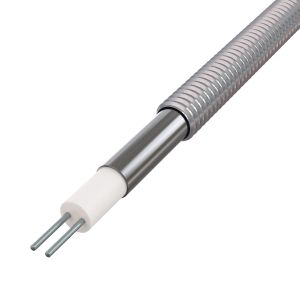

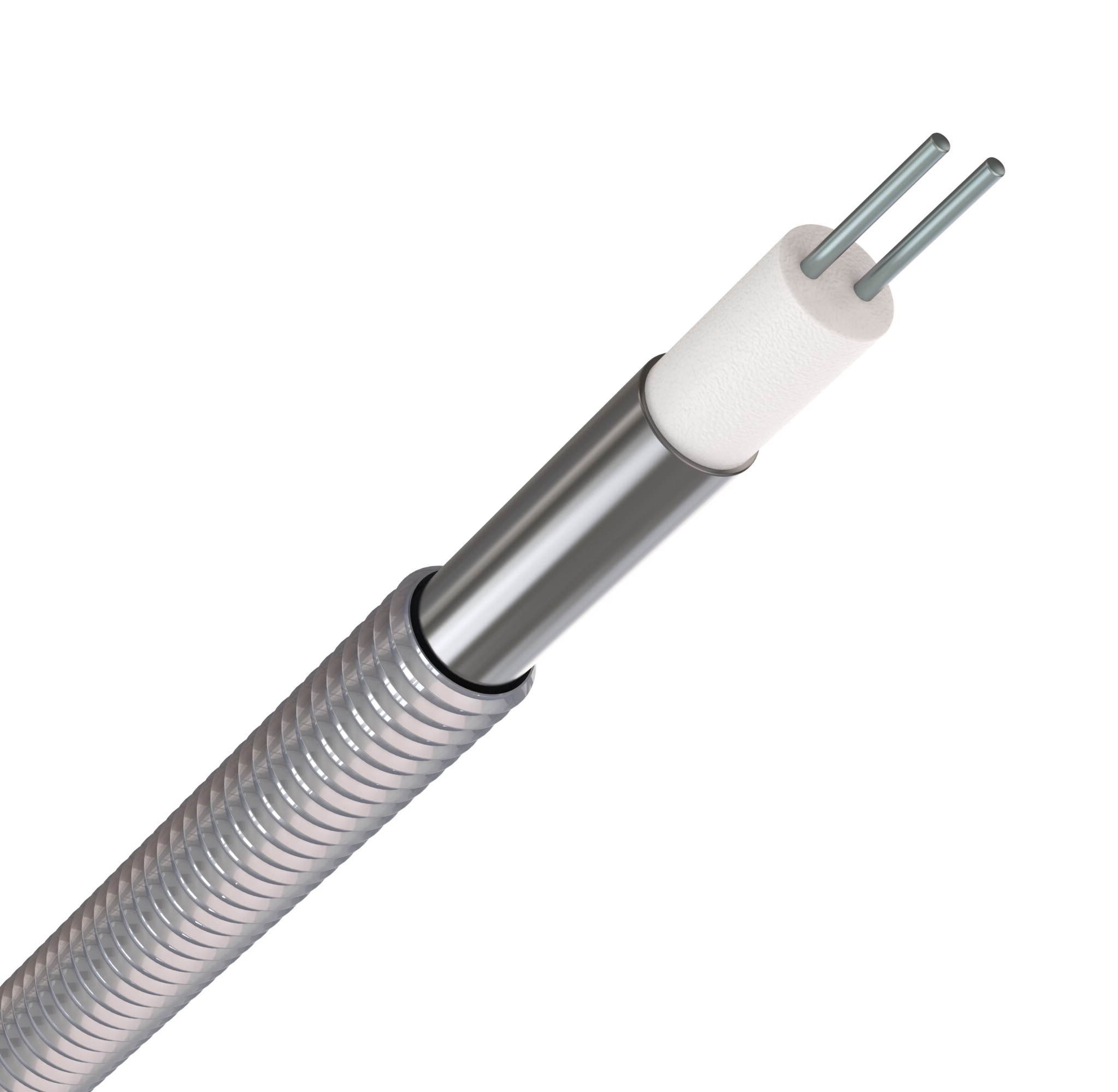

The XMI-L cable features a mineral-insulated heating element with an Alloy 825 sheath, enclosed within a corrugated 316L stainless steel outer sheath. This robust, multi-layer construction combines electrical insulation, mechanical protection, and corrosion resistance for industrial heating applications where high power output, elevated temperatures, and exposure to aggressive environments are important considerations.

The corrugated stainless steel outer sheath is designed to support lower sheath temperatures, enabling optimized heating-circuit layouts, potentially reduced heating passes, and improved installation flexibility in suitable applications. Actual performance depends on the cable configuration, thermal design, installation method, and operating conditions.

2. Key Features and Benefits

3. Technical Specifications

4. Applications of Raychem XMI-L Heating Cable

Raychem XMI-L heating cables are designed for industrial applications requiring reliable heat tracing, high-temperature capability, and resistance to demanding environmental conditions.

• Oil and gas production facilities
• Refineries and petrochemical plants
• Chemical processing facilities
• Industrial process piping and fluid transfer lines
• Process temperature maintenance for tanks and equipment
• Freeze protection for industrial piping and equipment
• High-temperature industrial installations
• Applications requiring corrosion-resistant sheath materials
• Selected hazardous-area industrial heating systems
• Industrial facilities requiring dependable electric heat tracing

The final cable selection should be based on the required maintenance temperature, minimum ambient temperature, process fluid, pipe dimensions, thermal insulation, circuit length, available power supply, and environmental conditions.

5. How Mineral Insulated Heating Technology Works

Mineral insulated heating cables use an electrical resistance heating element to convert electrical energy into heat. Magnesium oxide (MgO) provides electrical insulation between the heating element and the metallic sheath.

When electrical current passes through the resistance element, heat is generated and transferred through the cable structure to the pipe or equipment being heated. The required heating output depends on the cable resistance, electrical supply, circuit configuration, and operating conditions.

Unlike self-regulating heating cables, MI cables do not rely on a self-regulating polymer core to adjust local heat output. Their application requires appropriate electrical design, thermal calculations, and consideration of operating temperature limits.

Correct system engineering helps ensure that the cable supplies sufficient heat to compensate for heat losses while remaining within the permitted electrical and thermal operating limits.

6. Why Choose Raychem XMI-L Heating Cable?

Raychem XMI-L combines mineral insulation technology, an Alloy 825 inner sheath, and a corrugated 316L stainless steel outer sheath to address demanding industrial heat-tracing requirements.

Its high-temperature capability, substantial specified power output, corrosion-resistant construction, and potential for optimized heating-pass layouts make it a suitable solution for carefully engineered industrial applications.

The rugged cable construction and circuit-monitoring capabilities can also support the reliability and maintainability of critical heat-tracing systems. Final suitability depends on the specific process, installation environment, electrical design, and applicable product approvals.

7. Installation and Engineering Considerations

Proper system design is essential to achieving reliable and safe operation. Before selecting or installing an XMI-L heating cable, engineers should evaluate the following factors:

• Required process maintenance temperature and maximum exposure temperature
• Heat-loss calculations and required heating output
• Pipe or equipment dimensions and thermal insulation
• Cable length, electrical resistance, supply voltage, and circuit configuration
• Startup current and electrical protection requirements
• Outer sheath temperature and applicable temperature classification
• Corrosion compatibility with the process environment
• Hazardous-area certification and installation requirements
• Compatible connection kits, end terminations, controls, and monitoring equipment
• Mechanical protection, cable routing, and installation limitations

Installation, commissioning, and maintenance must be performed in accordance with the manufacturer's instructions and applicable electrical and hazardous-area regulations.

8. Energy Consumption and Operating Costs

The energy consumption of an XMI-L heating system depends on its actual electrical power, circuit length, operating schedule, process temperature, ambient conditions, and control strategy.

A preliminary energy estimate can be calculated by multiplying the average operating power in watts by the operating time in hours and dividing the result by 1,000. This provides an estimated energy consumption in kilowatt-hours (kWh).

For an accurate operating-cost estimate, engineers should account for the actual circuit design, thermal losses, control settings, and expected operating conditions rather than relying solely on the maximum specified power output.

9. Product Selection and Purchasing Guide

Before purchasing Raychem XMI-L heating cable, the following project information should be established:

• Required process maintenance temperature
• Minimum ambient temperature and maximum exposure conditions
• Process fluid composition and corrosion environment
• Pipe or equipment dimensions, material, and length
• Required heat output based on thermal calculations
• Available supply voltage and circuit electrical characteristics
• Required cable length and maximum permitted heating unit length
• Thermal insulation specifications and installation conditions
• Hazardous-area classification and applicable approvals
• Required electrical protection, controls, connection kits, and accessories
• Exact catalog number and applicable technical datasheet

Evaluating these parameters helps ensure that the selected cable meets the project's thermal, electrical, environmental, and safety requirements. Product availability, configuration, accessories, and warranty conditions should also be confirmed before ordering.

10. Warranty and Technical Support

Warranty coverage and technical support depend on the exact product configuration, market, and manufacturer's applicable terms and conditions. Confirm the warranty period and eligibility with the manufacturer or authorized supplier before purchase.

For technical information, installation instructions, product selection, and project-specific engineering recommendations, consult the official Raychem XMI-L product documentation.

11. Product Information Summary

12. Conclusion

The Raychem XMI-L MI Series Corrugated Stainless Steel Heating Cable is an industrial heat-tracing solution engineered for high-temperature process maintenance and freeze protection. Its MgO mineral insulation, Alloy 825 inner sheath, and corrugated 316L stainless steel outer sheath provide a robust construction for demanding industrial environments.

With a maximum specified power output of 50 W/ft (approximately 164 W/m) and process temperature maintenance capability up to 400°C (752°F), XMI-L is designed for applications where reliable thermal performance, corrosion resistance, and optimized heating-system design are essential.

Correct cable selection, thermal calculations, electrical protection, material compatibility, and compliance with the manufacturer's installation requirements are essential to achieving safe and reliable system performance.
