کابل هیت تریس خودتنظیم رایکم WinterGard

1. Product Overview

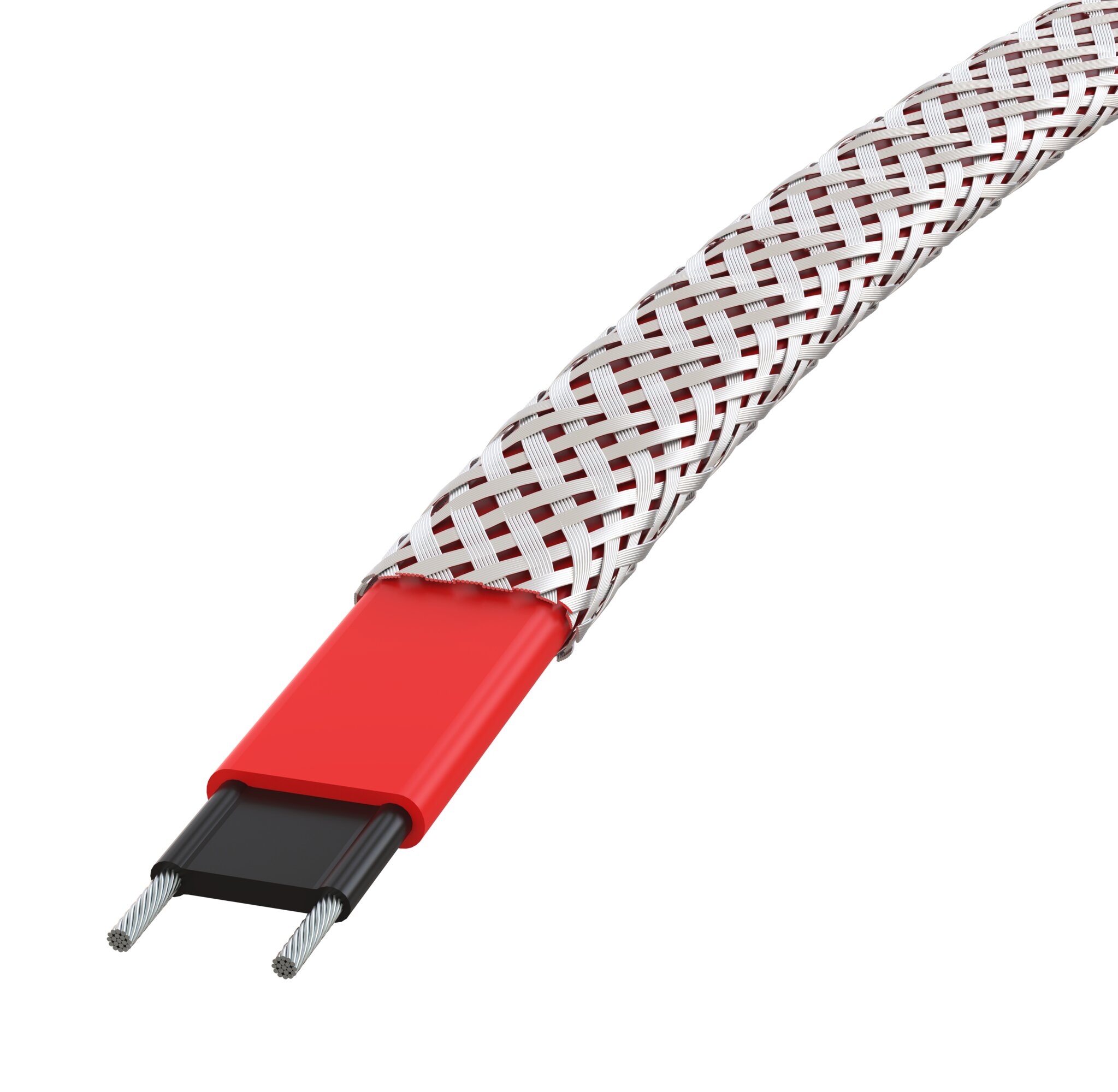

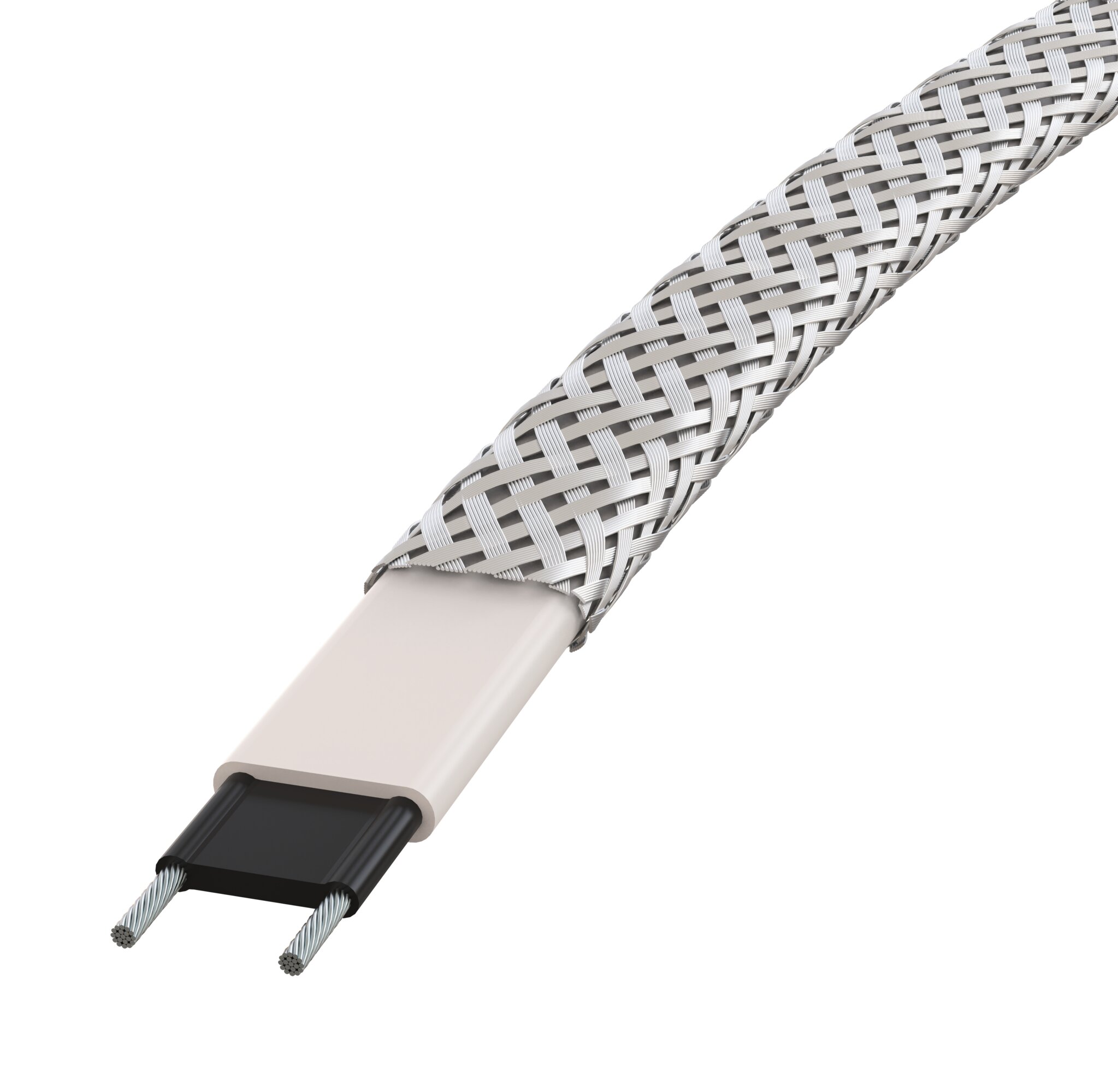

The Raychem WinterGard Self-Regulating Heating Cable is an energy-efficient electric heat-tracing solution designed to provide reliable freeze protection for water pipes and plumbing systems in cold weather conditions. Manufactured under the Raychem brand, the WinterGard range combines self-regulating heating technology with a practical, easy-to-install design to help protect piping systems against freezing temperatures.

The cable automatically adjusts its heat output in response to changes in the surrounding temperature. This self-regulating feature helps deliver heat where it is needed while supporting efficient energy consumption. Its cut-to-length design and meter markings simplify installation and system planning, making it suitable for a variety of residential and commercial pipe freeze protection applications.

Designed for dependable operation and minimal maintenance, Raychem WinterGard offers a practical solution for protecting exposed or insufficiently heated pipes against the risk of freezing during winter.

2. Key Features and Benefits

3. How Self-Regulating Heating Technology Works

The WinterGard heating cable uses a self-regulating heating element that responds to changes in temperature along the cable.

When the surrounding temperature decreases, the cable increases its local heat output to help compensate for heat loss. When the temperature rises, the heat output decreases accordingly.

This technology helps provide heat where it is required without maintaining the same output along the entire cable under all temperature conditions. The result is a practical and energy-conscious approach to pipe freeze protection.

Actual heating performance and energy consumption depend on the selected cable model, supply voltage, pipe dimensions, insulation, ambient temperature and installation conditions.

4. Applications

Raychem WinterGard Self-Regulating Heating Cable is designed primarily for pipe freeze protection applications, including:

• Residential water supply pipes
• Domestic plumbing systems
• Pipes installed in unheated spaces
• Water pipes in basements, garages and utility rooms
• Pipework exposed to low ambient temperatures
• Commercial buildings and service areas
• Plumbing installations in cold climates
• Other compatible piping systems requiring electric freeze protection

The suitability of a specific cable model depends on the pipe material, pipe diameter, environmental conditions and applicable installation requirements.

5. Technical Specifications

6. Installation Considerations

For effective and reliable freeze protection, the heating cable must be selected and installed according to the manufacturer's design and installation instructions.

• Confirm the required heating output for the pipe and environmental conditions.
• Select a cable compatible with the available supply voltage.
• Check the pipe material, diameter and total heated length.
• Provide suitable thermal insulation to reduce heat loss.
• Use the appropriate electrical connection kits, end seals and accessories.
• Install the cable according to the manufacturer's specified routing and attachment methods.
• Provide appropriate electrical protection and grounding in accordance with applicable regulations.
• Verify the complete installation before energizing the system.

The cable must not be installed or operated outside its specified limits. Consult the product-specific installation manual to determine whether a particular installation method, pipe material or application is permitted.

7. Product Advantages

8. Package Contents and Accessories

The contents of the package depend on the selected product configuration.

Depending on the cable model and installation requirements, additional components may be required, such as:

• Electrical power connection kits
• End-seal kits
• Splice or tee connection kits, where applicable
• Cable attachment materials
• Temperature controls, where required by the system design
• Suitable pipe insulation

Please confirm the supplied accessories and installation requirements for the exact catalog number before purchase.

9. Warranty and Product Support

Raychem WinterGard is designed for dependable long-term service. Warranty coverage, conditions and availability may vary by market, distributor and product configuration.

For technical assistance, cable selection, installation guidance and compatibility information, consult the manufacturer's product documentation for the specific WinterGard model.

10. Why Choose Raychem WinterGard?

Raychem WinterGard Self-Regulating Heating Cable is a practical choice for applications requiring reliable pipe freeze protection, flexible installation and temperature-responsive heating. Its self-regulating technology, cut-to-length design and low-maintenance characteristics make it suitable for a range of residential and commercial plumbing installations.

Choose the appropriate WinterGard model based on the required heating output, supply voltage, pipe dimensions and installation conditions to achieve effective and reliable freeze protection.

11. Product Information Summary
