Product Overview

Raychem HTV self-regulating heating cable is designed for freeze protection and process temperature maintenance of pipes and vessels operating at high temperatures. It supports continuous operating temperatures up to 205°C (400°F) and can withstand intermittent exposure temperatures up to 260°C (500°F), subject to the manufacturer's specified operating conditions.

The HTV heating cable features a high power retention (HPR) heating core combined with pressure-extruded electrical insulation. Its robust construction incorporates a nickel-copper metallic braid and a high-temperature fluoropolymer outer jacket, providing mechanical protection and resistance to a wide range of chemicals.

Designed for demanding industrial environments, Raychem HTV is suitable for heat tracing applications in both ordinary and hazardous locations when the applicable product approvals, system design requirements and installation instructions are followed.

Key Features and Benefits

• High power retention (HPR) heating core technology.
• Stable heating output over an extended service life.
• Pressure-extruded electrical insulation.
• Nickel-copper metallic braid providing a grounding path.
• High-temperature fluoropolymer outer jacket.
• Designed for freeze protection and process temperature maintenance.
• Suitable for metallic surfaces, including carbon steel and stainless steel.
• Multiple cable overlaps are permitted under the manufacturer's specified installation conditions.
• Available for applications in ordinary and hazardous locations, subject to the applicable approvals.

Technical Highlights

Applications

Raychem HTV self-regulating heating cable is designed for demanding industrial heat tracing applications, including:

• Freeze protection of industrial pipes and vessels.
• Process temperature maintenance in pipelines.
• Temperature maintenance of industrial process equipment.
• Oil and gas facilities.
• Petrochemical plants and refineries.
• Industrial facilities requiring high-temperature heat tracing.
• Chemical processing applications requiring resistance to corrosive environments.
• Approved hazardous-area installations.

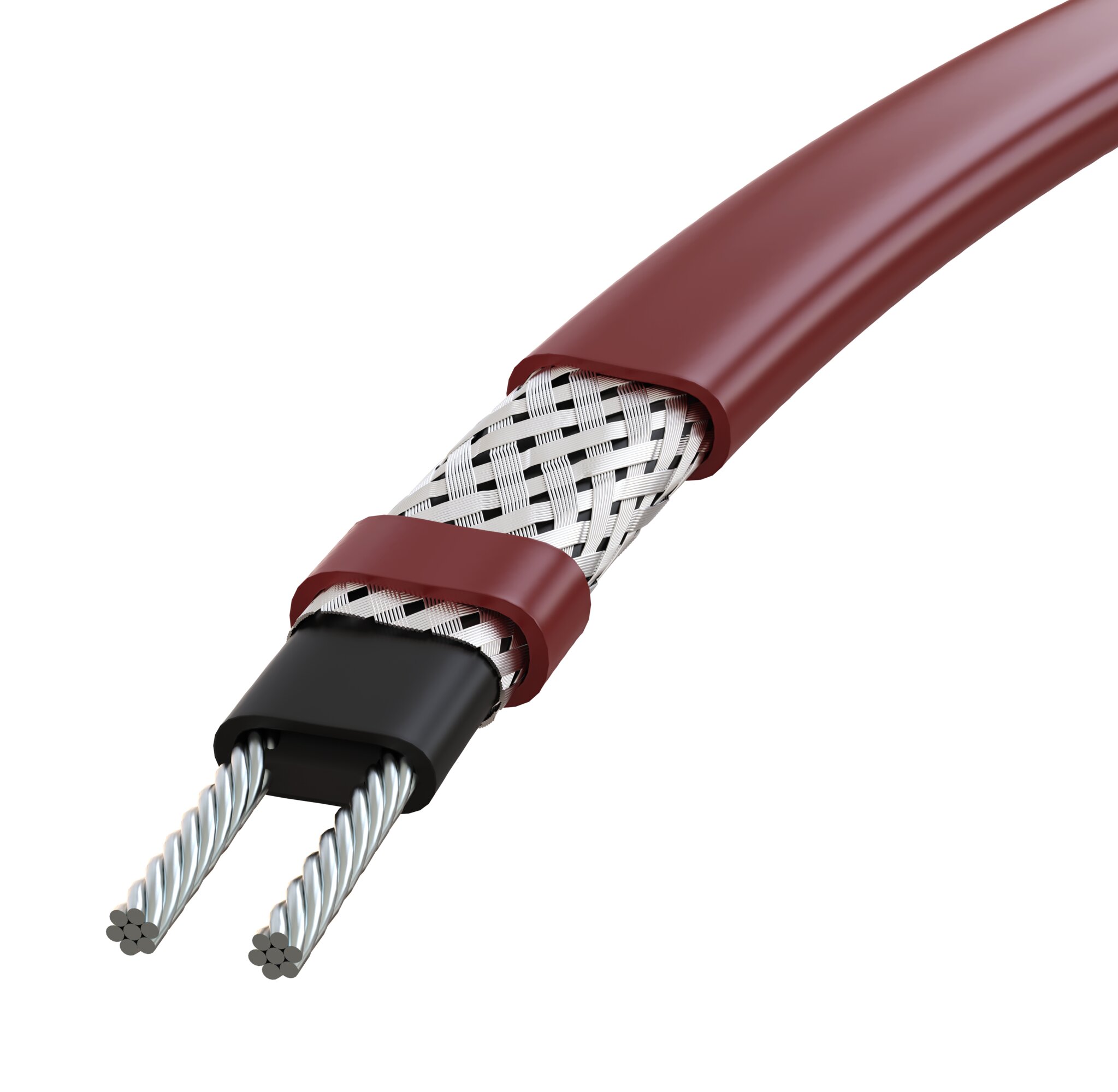

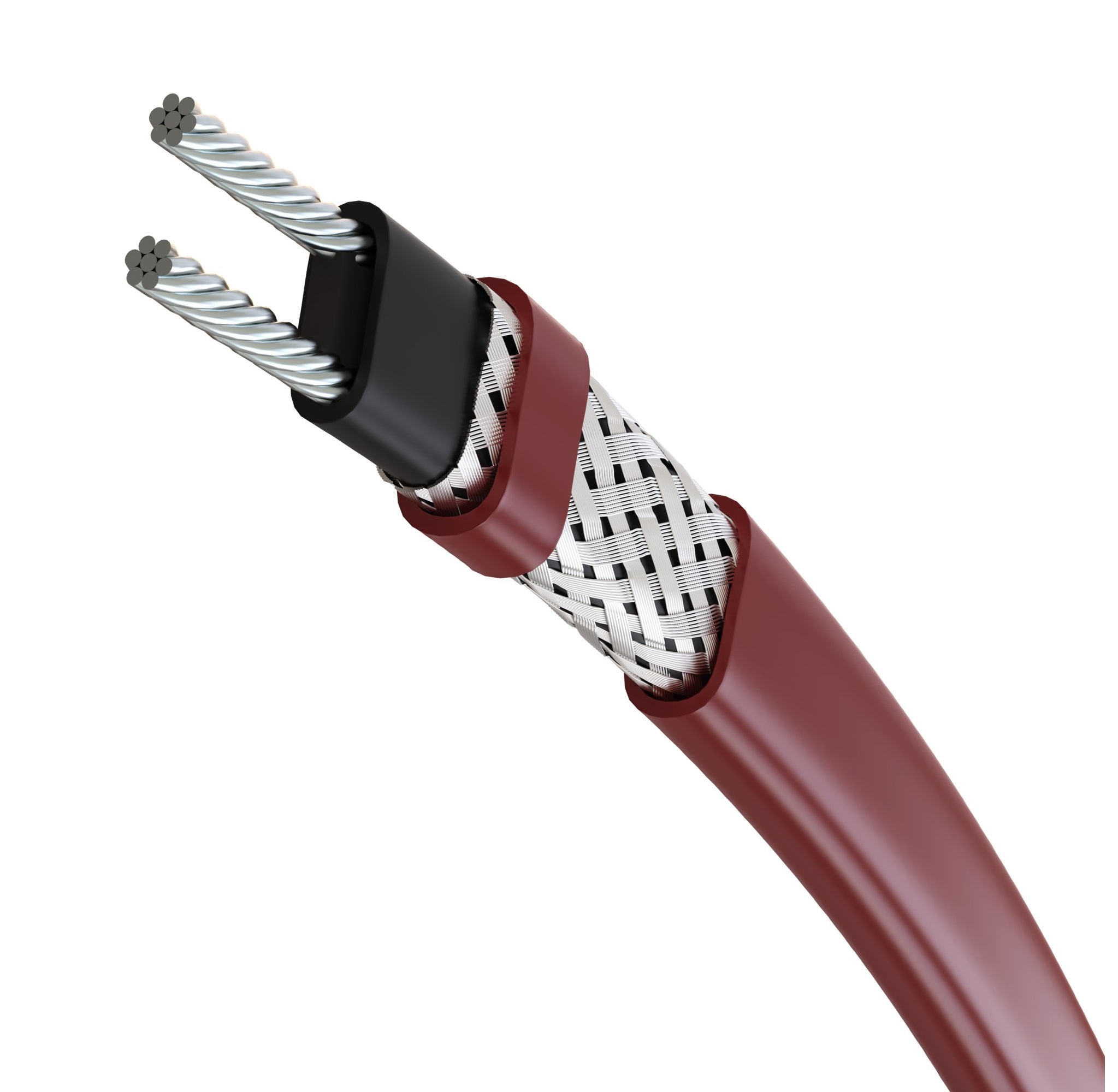

Cable Construction

The Raychem HTV cable construction combines a high power retention heating core with pressure-extruded electrical insulation. The cable incorporates 2.3 mm² nickel-plated copper conductors in the European version, a nickel-copper metallic braid and a high-temperature fluoropolymer outer jacket designated CT.

This construction is designed to provide reliable electrical insulation, effective heat transfer, long-term power stability and resistance to demanding industrial operating conditions.
