کابل هیت تریس ال‌ترم ELK-MI AY 825

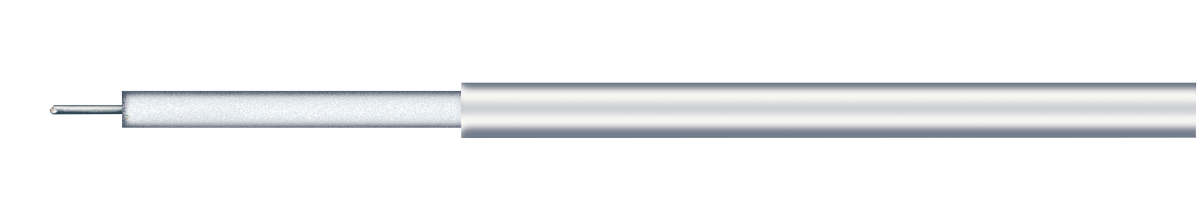

ELK-MI AY 825 Mineral-Insulated Heating Cable

Manufacturer: eltherm GmbH, Germany

High-Temperature Mineral-Insulated Trace Heating Cable with Alloy 825 Corrosion-Resistant Outer Sheath

1. Product Overview

The ELTHERM ELK-MI AY 825 is a high-performance mineral-insulated (MI) electric heating cable manufactured by eltherm GmbH, Germany. Designed for demanding industrial heating applications, it provides process temperature maintenance and freeze protection for pipelines, tanks, vessels, and process equipment operating under high-temperature conditions.

The ELK-MI AY 825 features a mineral-insulated heating element, magnesium oxide (MgO) insulation, and a corrosion-resistant outer sheath made of nickel-based Alloy 825 (material number 2.4858). The cable is available in single-conductor and twin-conductor configurations, allowing engineers to select a suitable arrangement according to the electrical and thermal requirements of the installation.

With a maximum nominal operating temperature of up to 700 °C, a maximum nominal heating output of up to 250 W/m, and a nominal voltage of up to 500 V AC, the ELK-MI AY 825 is designed for evaluation in specialized industrial heat-tracing applications requiring high thermal performance and suitable corrosion resistance.

The heating element is connected to the mineral-insulated cold leads through laser-welded connections. The cable is supplied in a factory-preassembled configuration to support consistent assembly quality and simplify installation.

2. Applications

The ELK-MI AY 825 mineral-insulated heating cable is designed for evaluation in a variety of industrial applications, including:

• Process Temperature Maintenance: Maintaining the required temperature of pipelines and process equipment.
• Freeze Protection: Helping prevent the freezing of fluids in pipelines and associated equipment.
• Industrial Pipelines: Electric heat tracing for process lines and fluid transfer systems.
• Tanks and Vessels: Heating and temperature maintenance for selected storage and processing equipment.
• Chemical and Petrochemical Industries: Heating applications requiring high-temperature capability and verified material compatibility.
• Oil and Gas Industry: Temperature maintenance for industrial equipment and process systems.
• High-Temperature Processes: Specialized applications requiring elevated operating temperatures.
• Industrial Process Equipment: Heating selected equipment where the cable's electrical and thermal characteristics meet the design requirements.

The suitability of the cable for a specific application depends on process conditions, chemical exposure, heat-loss calculations, electrical design, installation conditions, and applicable safety requirements.

3. Key Features and Benefits

• Mineral-insulated construction for demanding industrial heating applications.
• Maximum nominal operating temperature of up to 700 °C, subject to the selected configuration and operating limits.
• Maximum nominal heating output of up to 250 W/m, depending on the selected configuration.
• Nominal voltage of up to 500 V AC.
• Single-conductor and twin-conductor configurations.
• Corrosion-resistant nickel-based Alloy 825 outer sheath, material number 2.4858.
• Magnesium oxide (MgO) mineral insulation.
• Laser-welded connections between the heating element and cold leads.
• Factory-preassembled construction for installation according to the manufacturer's instructions.
• Different electrical resistance options for application-specific heating designs.
• Designed for process temperature maintenance and freeze protection.
• Suitable for evaluation in chemical, petrochemical, oil and gas, and other industrial process applications.
• Stainless-steel compression fittings for applicable electrical connection assemblies.
• Separate protective earth conductor with a cross-section of 1.5 mm².
• Mineral-insulated construction intended for high-temperature industrial service.

4. Technical Specifications

The following values describe the ELK-MI AY 825 product configuration as presented in the supplied technical description. The exact specifications and permitted operating conditions must be verified against the current official manufacturer datasheet and nameplate for the selected cable.

5. Cable Construction and Main Components

5.1. Heating Conductor

The heating conductor converts electrical energy into thermal energy. Its electrical resistance and material are selected according to the required heating output, supply voltage, operating temperature, and application design.

Depending on the selected cable configuration, conductor materials may include:

• Nichrome R
• KP
• Constantan
• Alloy 60
• Copper, where applicable

The exact heating conductor material must be confirmed using the official technical documentation for the selected cable.

5.2. Magnesium Oxide Mineral Insulation

The cable uses magnesium oxide (MgO) as its mineral insulation material. MgO electrically separates the internal heating conductor from the metallic outer sheath and supports heat transfer from the conductor to the surrounding installation.

This mineral-insulated construction is suitable for high-temperature industrial heating applications. The applicable insulation specification and standard should be verified against the manufacturer's documentation.

5.3. Alloy 825 Outer Sheath

The outer sheath is manufactured from nickel-based Alloy 825, identified by material number 2.4858. This alloy is selected for its resistance to many corrosive industrial environments and for its role in protecting the internal cable components.

Alloy 825 may be suitable for selected chemical-processing and industrial applications. Its compatibility must be evaluated according to the specific chemical composition, concentration, operating temperature, and exposure conditions.

5.4. Mineral-Insulated Cold Leads and Laser-Welded Connections

The heating element is connected to mineral-insulated cold leads through a laser-welded connection. This factory-assembled arrangement is designed to provide an electrical connection between the heating section and the cold-lead assembly.

The cold leads use copper conductors and may be available in different cross-sections depending on the selected configuration. The appropriate conductor size must be determined according to the operating current, circuit length, voltage drop, and installation conditions.

5.5. Compression Fittings and Protective Earth

The connection assembly may include stainless-steel compression fittings made from grade 1.4404 (AISI 316L). Depending on the selected configuration, connection threads may be M20 × 1.5 or M25 × 1.5.

A separate protective earth conductor with a cross-section of 1.5 mm² is provided for grounding. Cable glands, grounding arrangements, and connection accessories must be compatible with the selected cable and the installation environment.

6. How Does ELK-MI AY 825 Work?

The ELK-MI AY 825 operates by passing electrical current through a resistive heating conductor. Electrical energy is converted into thermal energy, which is transferred to the pipeline, vessel, or process equipment being heated.

The magnesium oxide insulation electrically separates the heating conductor from the metal sheath while supporting operation at elevated temperatures. The Alloy 825 outer sheath provides mechanical protection and resistance to many corrosive environments.

The electrical resistance, supply voltage, installed cable length, and circuit arrangement determine the heating power generated. Correct engineering calculations are required to establish the appropriate cable configuration and operating conditions.

A suitable temperature-control system may be incorporated where required by the process design. Control equipment and protective devices should be selected according to the cable characteristics, process temperature, and applicable safety requirements.

7. Corrosion Resistance and Industrial Environments

The Alloy 825 outer sheath is a key material feature of the ELK-MI AY 825. This nickel-based alloy is designed to resist corrosion in many industrial environments, making it a potential option for selected chemical, petrochemical, and process-heating installations.

The actual performance of the sheath depends on the chemical environment, concentration of corrosive substances, temperature, mechanical conditions, and duration of exposure.

Before installation in a corrosive environment, material compatibility should be assessed for the specific process conditions. The use of Alloy 825 does not imply universal resistance to every chemical or operating environment.

For hazardous-area applications, the cable and the complete heating system must comply with the relevant certification, temperature limits, and installation requirements. Approval status should be confirmed for the exact product configuration.

8. Connection Accessories and Electrical Integration

The ELK-MI AY 825 must be integrated with suitable electrical connection components and accessories selected according to the cable configuration and installation requirements.

The connection assembly may include compatible compression fittings, cold leads, power supply cables, junction boxes, and protective earthing components. Accessory selection must take account of electrical ratings, environmental conditions, enclosure requirements, and applicable safety standards.

8.1. Cold-Lead and Power Supply Connections

The mineral-insulated cold leads provide the electrical connection between the heating section and the power supply arrangement. Copper conductor cross-sections may include 2.0, 2.5, 3.3, and 5.0 mm², depending on the selected configuration.

The appropriate conductor size and connection arrangement must be verified according to circuit current, supply voltage, circuit length, voltage drop, ambient temperature, and installation conditions.

The selected cable glands, junction boxes, and power supply cables must be compatible with the specific heating cable assembly. Exact accessory compatibility should be confirmed using the manufacturer's technical documentation.

9. Product Identification and Installation Information

Before installation, the product designation, nameplate, technical datasheet, and ordering information should be checked to ensure that the supplied cable matches the project requirements.

The maximum permissible operating temperature, electrical ratings, connection arrangement, and other relevant limits must be established from the documentation for the exact cable configuration.

The cable must be installed according to the manufacturer's instructions, including the specified minimum bending radius, electrical protection requirements, protective earthing, and connection procedures.

The installation design should also account for thermal insulation, cable routing, environmental exposure, and the requirements of the equipment being heated.

10. Installation and Commissioning

The ELK-MI AY 825 is supplied in a factory-preassembled configuration. Correct handling and installation are essential to maintain the integrity of the mineral insulation, outer sheath, and connection assemblies.

A typical installation and commissioning process includes:

1. Reviewing the cable datasheet, product identification, and nameplate before installation.
2. Confirming the required heating output and cable configuration through thermal and electrical calculations.
3. Inspecting the cable, cold leads, compression fittings, and connection assemblies for visible damage.
4. Planning the cable route and observing the specified minimum bending radius.
5. Installing compatible connection boxes and accessories where required.
6. Providing appropriate electrical protection and protective earthing.
7. Performing the electrical tests specified by the manufacturer and applicable standards.
8. Verifying temperature-control arrangements and circuit protection before commissioning.
9. Recording relevant inspection and commissioning results.

Cable routing, thermal insulation, connection methods, and control arrangements must be suitable for the actual process conditions. Installation and electrical testing should be performed by suitably qualified personnel.

11. Selection and Engineering Considerations

To select the appropriate ELK-MI AY 825 configuration, the following parameters should be evaluated:

• Required process temperature and maximum permissible sheath temperature.
• Pipeline length, vessel dimensions, or equipment surface area.
• Calculated heat losses and thermal insulation requirements.
• Required heating output in watts per metre.
• Supply voltage, electrical resistance, circuit current, and voltage drop.
• Single-conductor or twin-conductor configuration.
• Ambient conditions, moisture exposure, and chemical compatibility.
• Suitable outer sheath material for the process environment.
• Connection fittings, cold leads, junction boxes, and power supply requirements.
• Temperature control, overcurrent protection, and other required protective devices.
• Installation layout and minimum bending radius.
• Hazardous-area classification and applicable certification, where required.
• Verification of the official product datasheet, nameplate, ordering code, and installation instructions.

The final cable selection should be based on project-specific thermal and electrical calculations rather than maximum ratings alone. Electrical resistance, installed length, supply voltage, thermal losses, chemical exposure, and the required process temperature must all be considered.

12. Safety and Maintenance

Before commissioning, verify that the heating cable, connection components, protective earth conductor, electrical protection, and temperature-control equipment meet the project requirements.

Periodic inspections should consider the condition of the outer sheath, electrical connections, grounding arrangements, thermal insulation, and control equipment. Any damaged component should be evaluated and repaired or replaced according to the manufacturer's instructions and applicable safety requirements.

For installations in potentially explosive atmospheres, verify the validity and scope of the relevant approvals for the exact product configuration and all associated equipment. Do not assume that a certification applicable to one configuration automatically covers every version of the product.

13. Conclusion

The ELTHERM ELK-MI AY 825 mineral-insulated heating cable is designed for industrial process temperature maintenance, freeze protection, and specialized high-temperature heating applications. Its magnesium oxide insulation, nickel-based Alloy 825 outer sheath, laser-welded connections, and factory-preassembled construction make it a potential solution for demanding industrial heating systems.

With a maximum nominal operating temperature of up to 700 °C, a maximum nominal heating output of up to 250 W/m, and a nominal voltage of up to 500 V AC, the ELK-MI AY 825 offers configuration options for applications across selected chemical, petrochemical, oil and gas, and general process industries.

The combination of high-temperature capability, corrosion-resistant sheath material, and single-conductor or twin-conductor configurations supports its evaluation for specialized industrial heating requirements.

Final product selection must be based on actual heat-loss calculations, electrical design, operating conditions, chemical compatibility, installation requirements, and applicable safety standards. The official manufacturer datasheet and product nameplate must be consulted before ordering or installation.
